K95 Dialer - Modem Definitions

Please refer to Using C-Kermit, Chapter 4, for a thorough explanation of Kermit 95's handling of modems, and to Appendix I for a technical overview of modems and serial communications.

Adding a New Modem

To add a new modem, click on Add. A little text box pops up into which you can type the name for your new modem. The name can contain spaces. Click on OK if you want to keep it, otherwise Cancel.

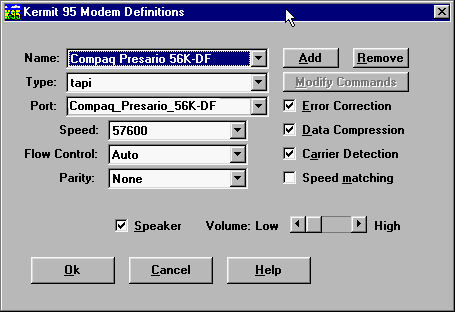

Now you're back on the Modem Definitions page. If your new modem type is one of Kermit's built-in types, and you want to use Kermit's built-in commands for it, choose it from the Type list, otherwise choose "tapi" to use TAPI's commands. Or, if you want to define your own commands, choose User-Defined.

Then fill in the COM port. COM1-COM8 are listed in the dropdown list; if your modem is on a higher-numbered COM port, just highlight an entry, delete it with the mouse or the Backspace key, and type in the name of the device, such as COM17. Then fill in the interface speed and flow control.

The check boxes on the right correspond to SET MODEM commands from Chapter 4 of Using C-Kermit:

Error Correction
Check this box to enable, uncheck to disable.

Data Compression
Check this box to enable, uncheck to disable.

Carrier Detection
Check this box to make Kermit 95 pop back to its prompt automatically if the modem turns off its Carrier Detect (CD) signal. Uncheck this box if you want to be able to enter the Terminal screen even when CD is off.

Speed Matching
See p.85, Using C-Kermit. Check this box if you want Kermit 95 to change its interface speed automatically to match the speed reported by the modem in its CONNECT message. Normally this should be done only for old 2400bps or slower modems. Leave this box unchecked for V.32, V.32bis, V.34, 56K, or other high-speed modems.

Speaker
Check this box if you want the modem speaker on during dialing, uncheck if you want it off.

Volume
Use the slider to select the speaker volume when the speaker is on.

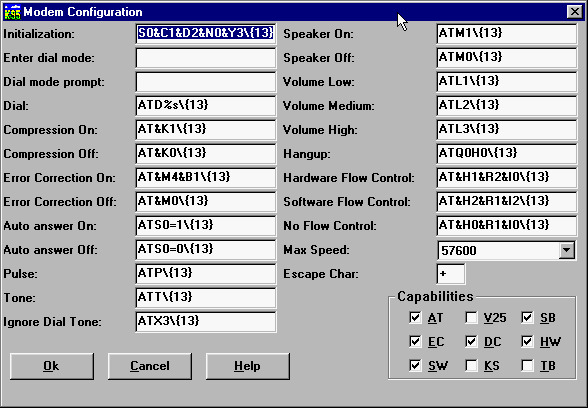

Now you can click the Modify Commands button. Here you see the commands that Kermit sends to the modem.

Each command is in a text box. In case a command doesn't fit, you can click on the text box with your mouse and them use the mouse or arrow keys to scroll horizontally. Consult pages 87-92 of Using C-Kermit and your modem manual while working on this page.

You can use normal editing techniques to change or remove each command. Remember:

Your modem's capabilities are indicated by the checkboxes in the lower right. See Table 4-1, page 83, Using C-Kermit, for a description. Each capability should be checked if your modem has it, unchecked if it does not.

Click on OK to save the modem commands or Cancel to discard them. You can also save the current modem type in the form of a Kermit script (SET MODEM commands) by choosing Generate Modem Script in the File menu on the main menu bar.

Removing a Modem

On the Modem options page, select the type you want to remove in the Name box, then click on Remove. Then click on OK to save this change, or Cancel to forget about it. A modem can not be removed if it is being used by a Connection Entry.

Exporting Modem Definitions

In the Dialer's main File menu, choose "Generate mode script". This creates a file called MODEM.KSC in Kermit 95's SCRIPTS subdirectory. The MODEM.KSC file contains macro definitions for all your modem types. The name of each macro is "modem-xxx", where xxx is the name of the modem. To load these definitions into Kermit 95, type TAKE MODEM.KSC. Then to execute any of these macros from the K-95> prompt, just type its name, e.g. "modem-default". The MODEM.KSC file is portable and may be used with other C-Kermit implementations.
